Support Legs Tool
Weight: 1.2 kg
- steel raw (uncoated)
- tool for assembly
of security ring by
support-leg-strut installation
Support-Leg-Strut without brake
Weight: 5.3 kg
- steel primed
- optionally painted
or hot-dip galvanized - strut length 600 mm
- dimension for the pin
400/ 500 mm
Support-Leg-Strut without brake
Weight: 7.5 kg
- steel primed
- optionally painted or
hot-dip galvanized - strut length 700 mm
- dimension for the pin
670 mm
Support-Leg-Strut without brake
Weight: > 6.0 kg
- steel primed
- optionally painted or
hot-dip galvanized - strut length 775/ 700 /
685/ 680/ 600 mm - dimension for the pin
500/ 460/ 360/ 350 mm
Support-Leg-Strut with brake
Weight: > 5.6 kg
- steel primed
- optionally painted or
hot-dip galvanized - strut length
775/ 580/ 560 mm - dimension for the pin
500/ 400/ 380/ 340 mm
Telescope Part adjustable by pin
Weight: > 3.0 kg
- steel primed
- optionally painted or
hot-dip galvanized - tube 90 x 90 mm
Telescope Part "Telematic"
Weight: > 4.6 kg
- steel primed
- optionally painted or
hot-dip galvanized - tube 89 x 89 mm
Telescope Part "UTP"
Weight: > 4.3 kg
- steel primed
- optionally painted or
hot-dip galvanized - tube 90 x 90 mm
UTP-Telescope Bolt
Weight: 0.68 kg
- steel galvanized
- for telescopic part 605.xxx.000
Cotter Pin (Safety Linch Pin)
Weight: 0.1 kg
- steel galvanized
- for telescopic parts 639.130.xxx and for telescopic parts 649.130.002

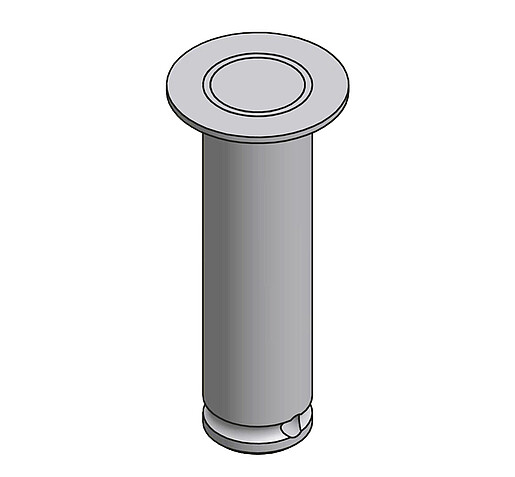

Locking Pin
Weight: 0.7 kg
- steel raw (uncoated)
- for telescopic parts 649.130.xxx
