Twist lock rigid version (non retractable)
The rigid twist locks for ISO standard containers cover a wide range of applications. If the type you require is not listed here, please contact us. Click thumbnails to open a drawing (PDF) in a new window.

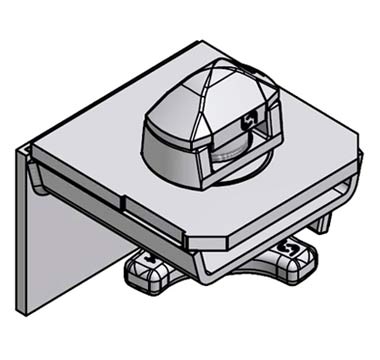

twist lock with 52 mm locking pin
Weight: 13 kg
- for ISO stand. container
- steel housing raw with
back plate 140 mm - 180 x 185 x 215 mm
- with lever

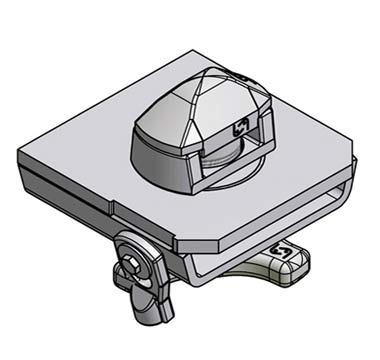

twist lock with 52 mm locking pin
Weight: 11 kg
- for ISO standard container
- steel housing raw
- 170 x 175 x 215 mm
- with lever
twist lock with 52 mm locking pin
Weight: 13 kg
- for ISO stand. container
- steel housing raw with
back plate 140 mm* - 180 x 185 x 194 mm
- with security ring
twist lock with 52 mm locking pin
Weight: 13 kg
- for ISO stand. container
- steel housing raw with
back plate 140 mm* - 180 x 185 x 204 mm
- with security ring
- locking pin guide rotated by 90°
twist lock with 52 mm locking pin
Weight: 11 kg
- for ISO standard container
- steel housing raw
- 170 x 175 x 194 mm
- with security ring
twist lock with 38 mm locking pin
Weight: 9 kg
- for ISO standard container
- steel housing primed
- 180 x 150 x 191 mm
- with back plate 140 mm
- with security ring
twist lock with 38 mm locking
Weight: 7 kg
- for ISO standard container
- steel housing primed
- 170 x 150 x 205 mm
- with lever
twist lock with 52 mm locking pin
Weight: 10 kg
- for ISO standard container
- steel housing raw
- 175 x 170 x 147,5 mm
- with screw lock
- security latch
right hand side
twist lock with 52 mm locking pin
Weight: 10 kg
- for ISO standard container
- steel housing raw
- 175 x 170 x 147,5 mm
- with screw lock
- security latch
left hand side
twist lock with 52 mm locking pin
Weight: 11 kg
- for ISO stand. container
- steel housing raw
- 170 x 185 x 147,5 mm
- with back plate 140 mm
- with screw lock
- security latch right hand side
