Twist lock fully retractable
There are different versions of the fully retractable twist locks for ISO containers and swap bodies due to the design requirements of the carrier vehicle. If the type you require is not listed here, please contact us. Click thumbnails to open a drawing (PDF) in a new window.

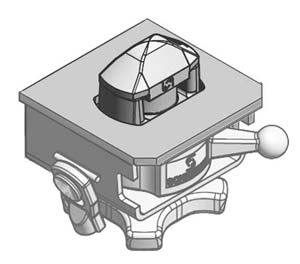

with 52 mm locking pin
Weight: 15 kg
- for ISO standard container
- steel for welding on
- 180 x 185 x 204 mm
- with back plate
- with security ring

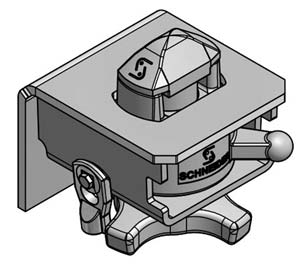

with 52 mm locking pin
Weight: 14 kg
- for ISO standard container
- steel for welding on
- 175 x 170 x 204 mm
- with security ring
with 52 mm locking pin
Weight: 11 kg
- for swap systems
left hand side - steel for welding on
- 185 x 180 x 160 mm
- with back plate 120 mm
- with security ring
with 52 mm locking pin
Weight: 11 kg
- for swap systems
right hand side - steel for welding on
- 185 x 180 x 160 mm
- with back plate 120 mm
- with security ring
with 52 mm locking pin
Weight: 10 kg
- for swap systems
right hand side - steel for welding on
- 175 x 170 x 125 mm
- with security ring
with 52 mm locking pin
Weight: 10 kg
- for swap systems
left hand side - steel for welding on
- 175 x 170 x 125 mm
- with security ring
with 52 mm locking pin
Weight: 17 kg
- for platform chassis in accordance with ISO-norm
- steel housing raw
- 200 x 245 x 205 mm
- with security ring
with 52 mm locking pin
Weight: 13 kg
- for platform chassis
- for swap systems
- steel housing raw
- 200 x 245 x 100 mm
- with security ring
with 38 mm locking pin
Weight: 11 kg
- for ISO standard container and swap systems, right hand side
- steel for welding on
- 185 x 180 x 166 mm
- with back plate 120 mm
- with security ring
with 38 mm locking pin
Weight: 11 kg
- for ISO standard container and swap systems, left hand side
- steel for welding on
- 185 x 180 x 166 mm
- with back plate 120 mm
- with security ring
with 38 mm locking pin
Weight: 11 kg
- for ISO stand. container and swap systems
- steel for welding on
- 160 x 180 x 170 mm
- with back plate 120 mm
- with security ring
- Limited suitability for hot-dip galvanising
with 38 mm locking pin
Weight: 10 kg
- for ISO standard container
and swap systems - steel housing raw
- 150 x 150 x 170 mm
- with security ring
- Limited suitability for hot-dip galvanising
with 38 mm locking pin
Weight: 13 kg
- for platform chassis in accord. with ISO-norm
- steel housing raw
- 200 x 230 x 170 mm
- with security ring
Limited suitability for hot-dip galvanising
